180kW Silent Diesel Generator with Digital Panel Water Cooling System Auto Start High Quality and Factory Cheap Price 225KVA

180kW Silent Diesel Generator with Digital Panel Water Cooling System Auto Start High Quality and Factory Cheap Price 225KVA
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Mái hiên: tùy chỉnh
Bảo hành: 12 tháng/1000 giờ
Kiểu: Im lặng (siêu im lặng) hoặc Mở, Im lặng, v.v., Nội tuyến/6 xi-lanh/4 thì/4 van/19L, Mái che cách âm
Bảng điều khiển: Màn hình kỹ thuật số LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Loại đầu ra: AC một pha/ba pha
Bộ điều khiển: Biển sâu/Smartgen/v.v.
Ứng dụng: ngân hàng công nghiệp vv
Điện áp định mức: 400/230V, 110-480V, 220V/380V, 110V/240V, 380V
Máy phát điện: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford hoặc Newtec, Engga
Tên sản phẩm: Máy phát điện Diesel, Máy phát điện 180kW, Chạy bằng máy phát điện Diesel FAWDE, Máy phát điện Diese
Màu sắc: Yêu cầu của khách hàng
Tính thường xuyên: 50/60Hz
Công suất định mức: 225kva
Động cơ: Fawde gốc
Phương pháp làm mát: Hệ thống làm mát bằng nước
Làm nổi bật:

180kW silent diesel generator

,

water cooling diesel generator

,

auto start diesel generator

Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: FAWDE
Chứng nhận: CE
Số mô hình: CA6DL2 - 27D
Thanh toán
chi tiết đóng gói: Ván ép
Thời gian giao hàng: 30 ngày
Khả năng cung cấp: 500pc mỗi tháng
Mô tả sản phẩm

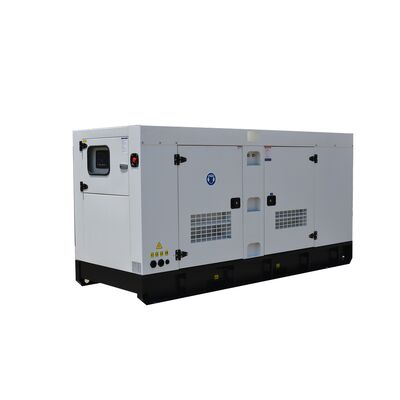

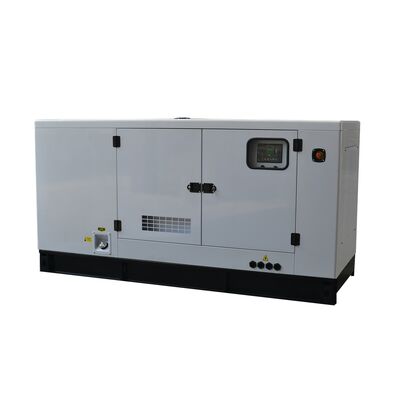

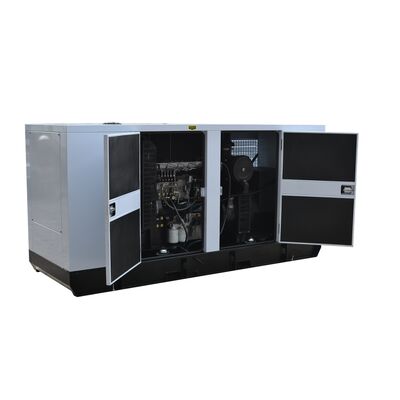

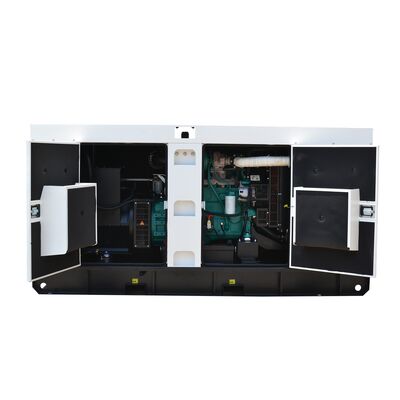

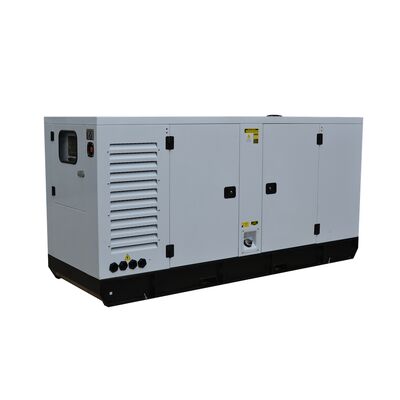

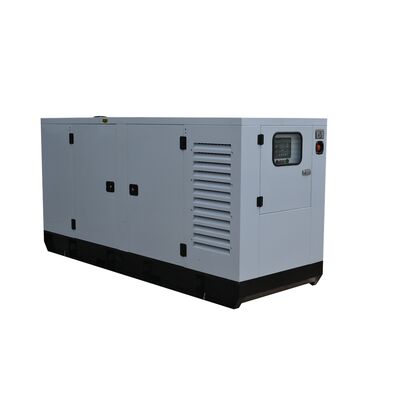

180kW Silent Diesel Generator with Digital Panel Water Cooling System
Product Overview

Our 180kW 225KVA BOBIG FAWDE diesel generator (Model: CA6DL2-27D) provides reliable power for industrial, commercial, and residential applications. Backed by the FAWDE brand, it delivers high-quality performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 180kW (225KVA) for stable, efficient operation under heavy loads
  • Frequency: 50Hz standard for compatibility with most electrical equipment
Engine Excellence
  • Engine Model: CA6DL2-27D FAWDE engine with high torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth, consistent power supply
Technical Specifications
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 225 248
Power Rating (kW) 180 198
Frequency (Hz) 50
Engine Model CA6DL2-27D
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8 hours @ 75% load
Engine Specifications
Parameter Specification
Engine Model & Manufacturer CA6DL2-27D (FAWDE)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 stroke
Aspiration Turbocharged & Intercooled
Cooling System Water-cooled
Bore 112 mm
Stroke 145 mm
Compression Ratio 17.5:1
Displacement 8.57 L
Dry Engine Weight 830 kg
Dimension (L*W*H) 1308*778*986 mm
Alternator Specifications
Parameter Specification
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274J
Alternator Rated Power 180kW/225kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Protection Grade IP23
Insulation Class H class
Dimensions and Weight
Model BFA248 (Open) BFA248S (Silent)
Length (mm) 2600 3700
Width (mm) 1100 1220
Height (mm) 1850 1950
Tank Capacity (L) 414 414
Applications
  • Industrial Use: Backup power for factories to ensure continuous production
  • Commercial Buildings: Power for offices, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable grids
Warranty and Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first). We provide free replacement of defective parts during warranty and ongoing technical support.

Why Choose Us
  • Trusted FAWDE brand reputation
  • International quality certifications (ISO, CE)
  • Customizable solutions for specific requirements
  • Professional 24/7 after-sales support
