| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 9 | 10 |
| Power Rating (kW) | 7 | 8 |
| Frequency (Hz) | 50 | |
| Engine Model | 3TNV76-GGE | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

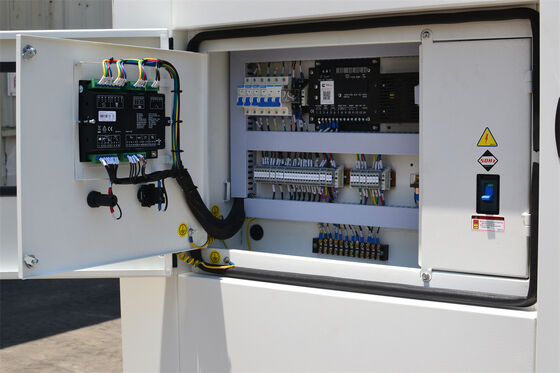

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (According to customer requirements) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Model | BYN10 (Open Type) | BYN10S (Silent Type) |
|---|---|---|
| Length (L) mm | 1400 | 1750 |
| Width (W) mm | 610 | 850 |
| Height (H) mm | 1130 | 1030 |
| Tank Capacity (L) | 16 | 16 |
| Engine Model & Manufacturer | 3TNV76-GGE (YANMAR) |
|---|---|
| Engine Type | 4 cycle, Inline, Water-cooled Diesel |
| No. of Cylinders - Bore × Stroke (mm) | 3-φ76×82 |
| Combustion System | Indirect Injection |
| Compression Ratio | 23.5 |
| Displacement (liter) | 1.116 |
| Rated Output | kW(PS): 9.2/(12.2)/10.7(14.5) min⁻¹: 1500/1800 |
| Continuous Rating | kW(PS): 8.2(11.1)/9.8(13.3) min⁻¹: 1500/1800 |
| Specific Fuel Consumption | g/kW-h(g/PS-h): 258(190) (at rated output) Ambient condition: 25℃, 750mmHg, 30% |
| Engine Speed at No Load | Max. (min⁻¹): 1900(+25/-25) Min. (min⁻¹): 1200(+25/-25) |
| Governor Type | Centrifugal-all speed governor |
| Direction of Rotation | Counterclockwise (viewed from F.W.) |
| Engine Dry Weight (kg) | Approx. 123 |
| Alternator Brand | BOBIG |
|---|---|
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-164B |
| Alternator Rated Power | 7kw/9kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%～+20% |
