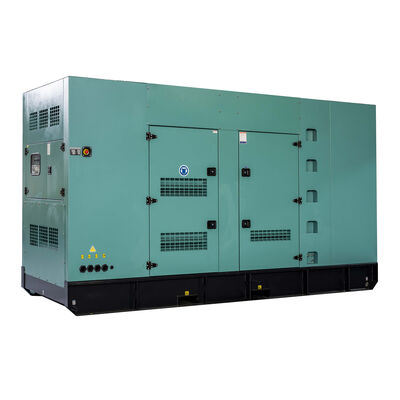

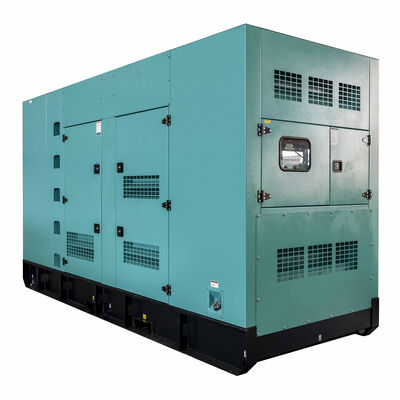

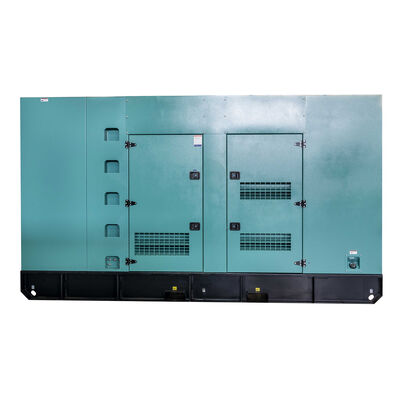

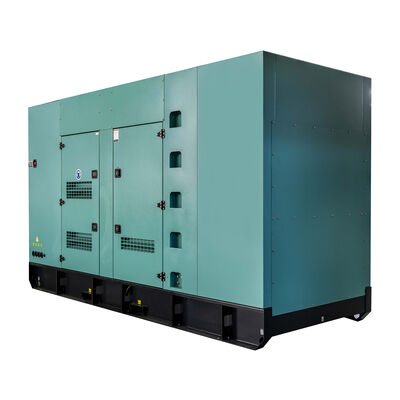

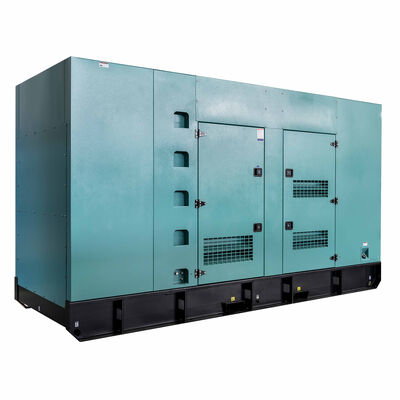

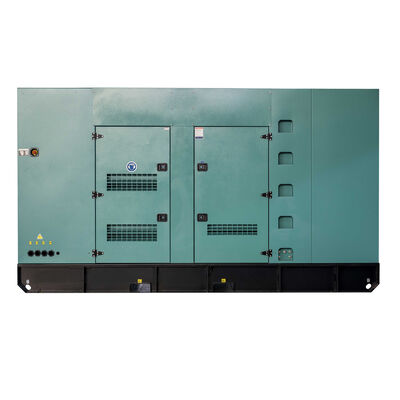

Our 80kW 100KVA BOBIG FAWDE diesel generator (Model: CA6F2D-14D) is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 100 | 110 |
| Power Rating (kW) | 80 | 88 |
| Frequency (Hz) | 50 | |
| Engine Model | CA6DF2D-14D-YFD10W | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (According to customer requirements) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Engine Specifications | Details |
|---|---|
| Engine Model & Manufacturer | CA6DF2D-14D-YFD10W (FAWDE) |
| Engine Model | CA6F2D-14D |
| No. of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | 4 stroke |
| Aspiration | Turbocharged |
| Cooling System | Water-cooled |
| Bore | 110 mm |
| Stroke | 115 mm |
| Compression Ratio | 17.5:1 |
| Displacement | 6.56 L |
| Dry Engine Weight | 700 kg |
| Dimension (L*W*H) | 1310*721*995 |
| Alternator Specifications | Details |
|---|---|
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274C |
| Alternator Rated Power | 80kw/100kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Dimension and Weight | Open Type (BFA110S) | Silent Type |
|---|---|---|
| Length (L) mm | 2200 | 3000 |
| Width (W) mm | 900 | 1040 |
| Height (H) mm | 1500 | 1420 |
| Tank Capacity (L) | 184 | 184 |
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or raw material quality issues.
Our generator complies with multiple international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, guaranteeing quality, safety, and reliability.
Plywood case, 10-15 working days after receiving customer deposit.
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit.
Fuzhou port, Fujian province or as customer request.
Yes, we provide regular engine filters for self-maintenance and can supply parts anytime within 3-5 days.
Yes, voltage, frequency, tank capacity, phase, and color can be customized according to your needs.
