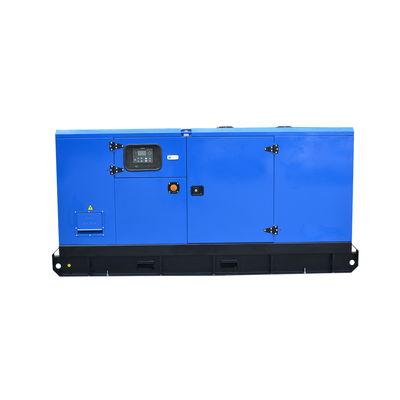

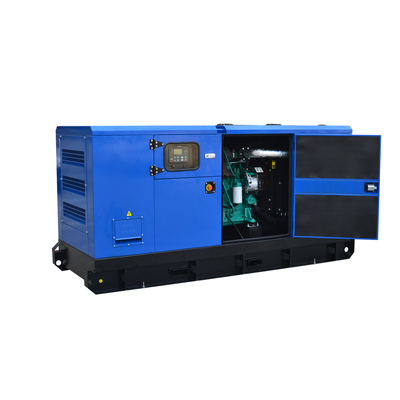

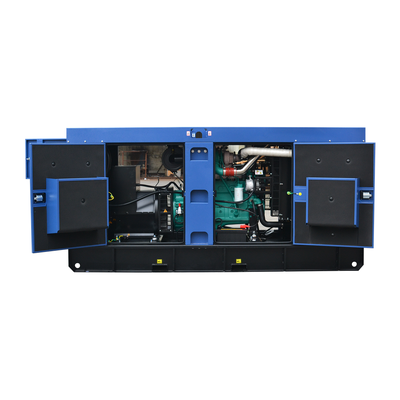

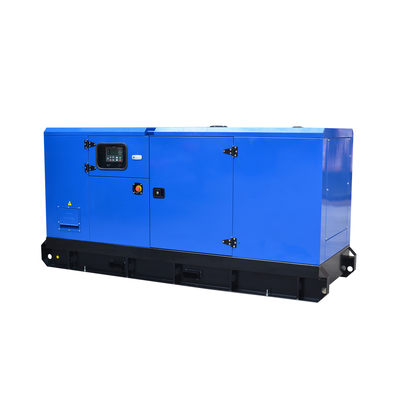

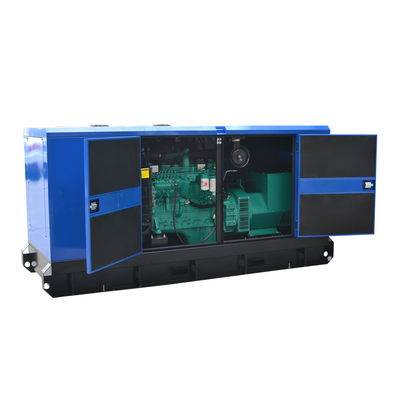

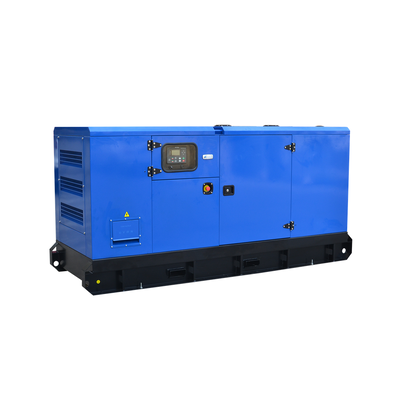

Model: NTAA855-G7 - Reliable Power Solution
Our 300kW 375KVA BOBIG CUMMIN S diesel generator is designed to provide reliable power for a wide range of industrial, commercial, and residential applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 375 | 413 |
| Power Rating (kW) | 300 | 330 |
| Frequency (Hz) | 50 | |
| Engine Model | NTAA855-G7 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Model | BC413 (Open Type) | BC413S (Silent Type) |
|---|---|---|
| Length (mm) | 3350 | 4200 |
| Width (mm) | 1300 | 1580 |
| Height (mm) | 2050 | 2100 |
| Tank Capacity (L) | 690 | 690 |
| Engine Model & Manufacturer | NTAA855-G7 (Cummins) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | Four Stroke |
| Aspiration | Turbocharged & Aftercooled |
| Bore x Stroke | 140 x 152 mm |
| Displacement | 14 L |
| Compression Ratio | 14.0:1 |
| Prime Power/Speed | 343 kW/1500 rpm |
| Standby Power/Speed | 381 kW/1500 rpm |
| Fuel System | PT |
| Cooling System | Force Water Cooling Cycle |
| Total Lubrication System Capacity | 36 L |
| Coolant Capacity (Engine Only) | 20.8 L |
| Fuel Consumption (100% Load) | 207 g/kWh @1500 rpm |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-314F |
| Alternator Rated Power | 300kW/375kVA |
| Rated Voltage | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Voltage Regulation, Steady State | ≤±1% |
Our generator complies with multiple international standards including:
We support customization and OEM services with design drawings.
All units are equipped with original power supplies and standard DSE 6120 controller.
Engine, generator, and controller options are available.
BOBIG products come with a one-year or 1000-hour warranty (whichever comes first). During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. After expiration, we provide cost-effective spare parts maintenance.
Our professional after-sales service team is available 24/7 for technical support, maintenance, and repair services.
Plywood case packaging, 10-15 working days after receiving customer deposit.
