| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 113 | 124 |
| Power Rating (kW) | 90 | 99 |
| Frequency (Hz) | 50 | |
| Engine Model | 4HTAA4.3-G23 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated voltage (V) | 400/230 | |
| Fuel tank capacity operating time | ≥ 8h @ 75% load | |

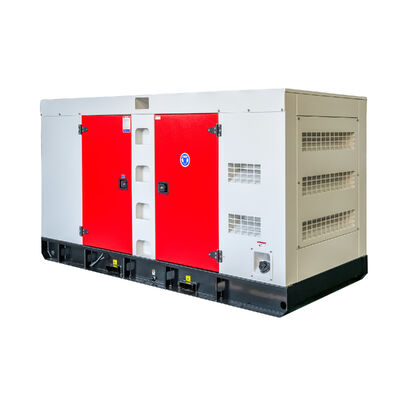

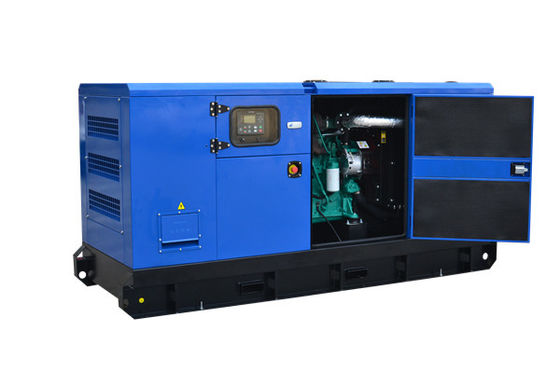

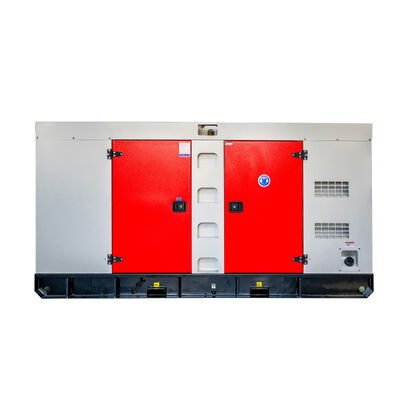

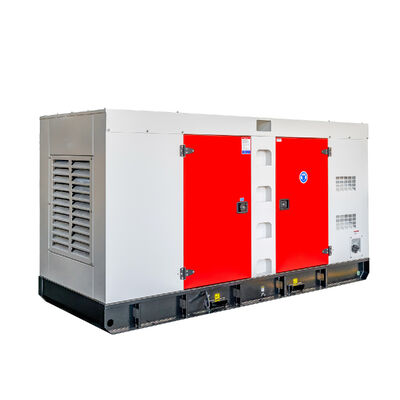

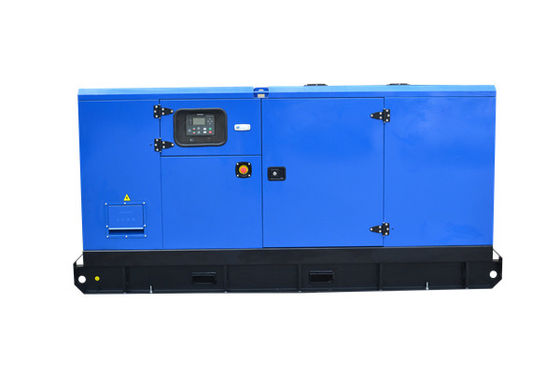

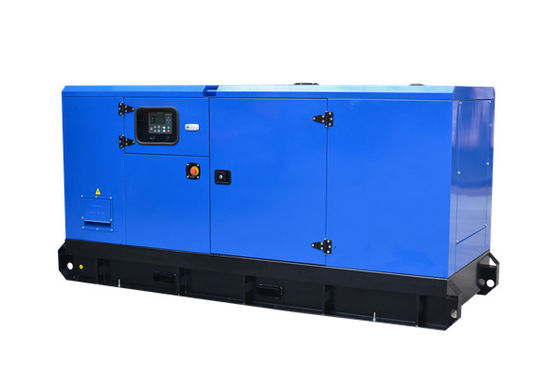

| Model | Open Type (BSD124) | Silent Type (BSD124S) |
|---|---|---|
| Length (mm) | 2200 | 2650 |
| Width (mm) | 800 | 1040 |
| Height (mm) | 1500 | 1400 |
| Tank capacity (L) | 207 | 207 |
| Engine Model & Manufacturer | 4HTAA4.3-G23 (SDEC) |
| Engine Type | In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler |
| Combustion type | Direct injection |
| Cylinder Type | Dry liner |
| Number of cylinders | 4 |
| Bore × stroke | 105 × 124 mm |
| Displacement | 4.3 lit. |
| Compression ratio | 16 : 1 |
| Firing order | 1-3-4-2 |
| Fuel injection advance angle | 10°BTDC |
| Dry weight | 450 kg |
| Dimension | 1080 × 738 × 1078 mm |
| Rotation | CCW viewed from flywheel |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274D |
| Alternator Rated Power | 90kw/113kva |
| Rated voltage (V) | 230v/400v |
| Rated frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Protection Grade | IP23 |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
